Description

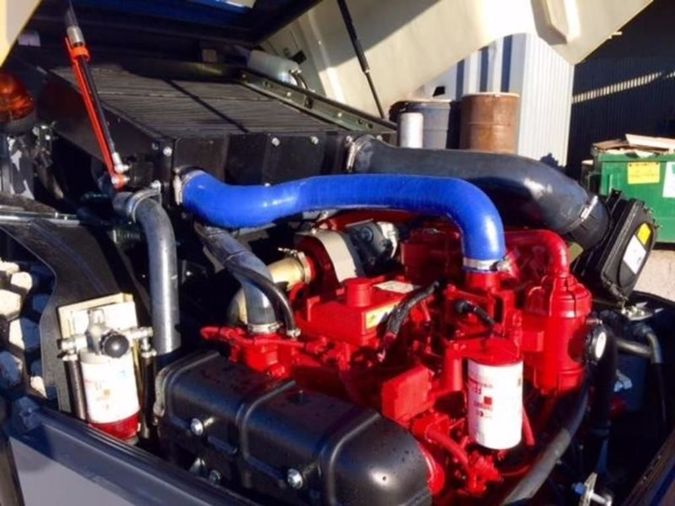

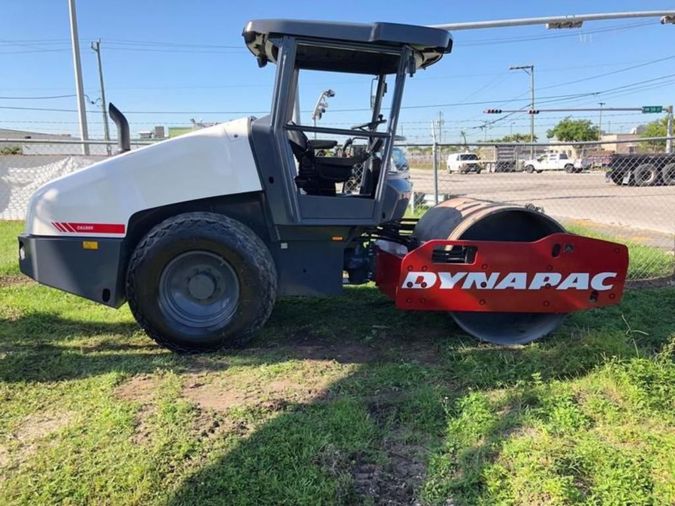

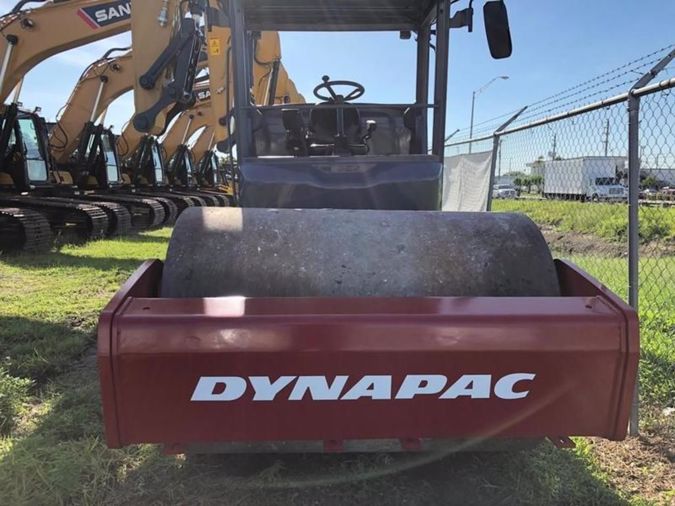

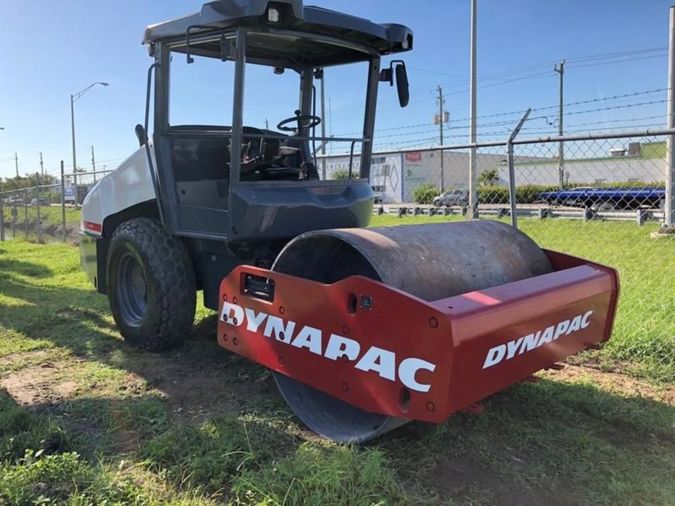

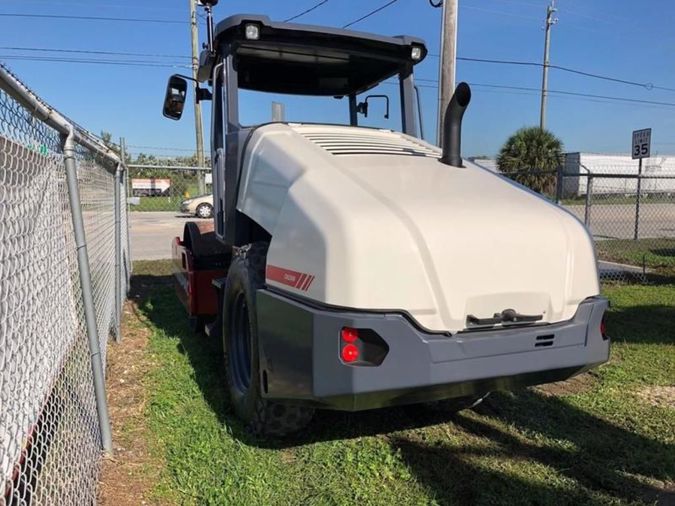

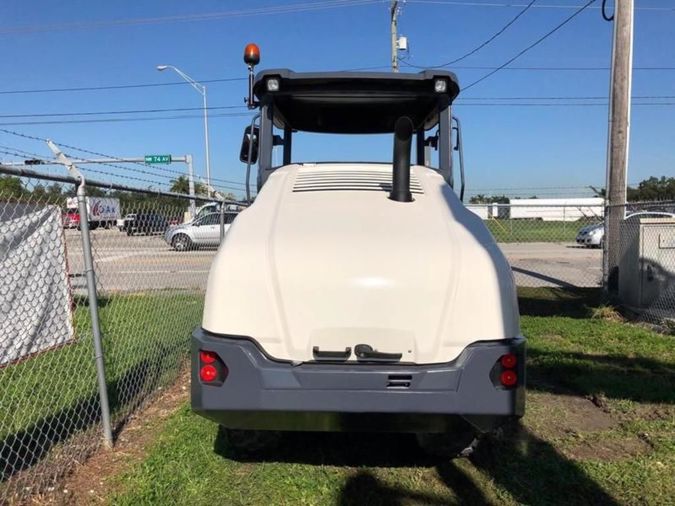

InfoThe small Dynapac soil compactors are vibratory rollers designed for compaction operations in pipe trenches, compacting roads, streets and parking lots. Due to the small size and exceptional maneuverability, these rollers are also well suited for compaction on large building foundations and industrial construction sites and in cramped spaces in connection with refilling work. The rollers are also suitable for repair work and gives good maneuverability even on very steep slopes. All types of supporting and reinforcement courses can be compacted.Specifications MassesOperating mass (incl. ROPS) 15,500 lbs Operating mass (incl. Cab) 15,900 lbs Module mass (front/rear) 7,750 lbs/7,750 lbs Max. operating mass 18,700 lbsPropulsionSpeed range 0 -7.5 mp/h Tire size (8 ply) 14.9 x 24 TL Theor. gradeability 55 % Vertical oscillation 9CompactionStatic linear load 118 lbs/in Nominal amplitude (high/low) 0.071 in/0.031 in Vibration frequency (high/low amplitude) 1,920 vpm/2,160 vpm Centrifugal force (high/low amplitude) 29,900 lb/16,200 lbEngineManufacturer/Model Deutz TD3.6 (IIIB/T4) Type Water cooled turbo diesel Rated power, SAE J1995 55 kW (75 hp) @ 2,200 rpm Fuel tank capacity 50 galEngineManufacturer/Model Cummins QSB3.3 (IIIA/T3) Type Water cooled turbo diesel Rated power, ISO 14396 74 kW (100 hp) @ 2,200 rpmHydraulic systemDriving: Hydrostatic Vibration: Hydrostatic Steering: Hydrostatic Service brake: Hydrostatic in forward and reverse lever. Parking/Emergency brake: Failsafe multidisc brake in drum gear box and in rear axle.
